Year
2025
Make
Isuzu
Model
FVZ 260-300
Condition
New
Location
Midland, WA
Stock No.
6/9006
1 x 10 -1 grease pump

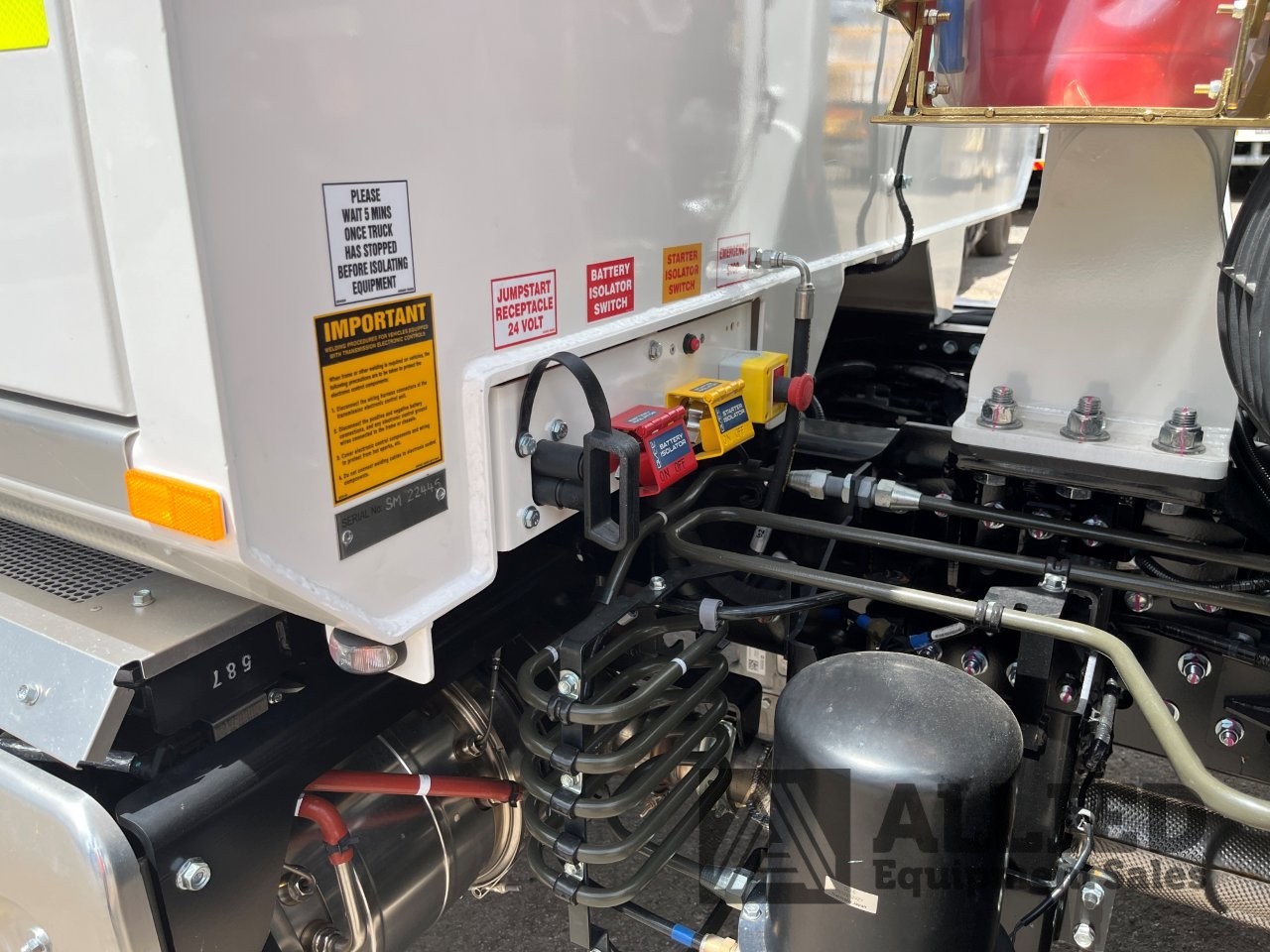

1 x 24V Jump start Receptacle
1 x 5 – 1 high volume oil pumps for gear oils
1 x Battery Isolator
1 x Starter Isolator
2 pack paint

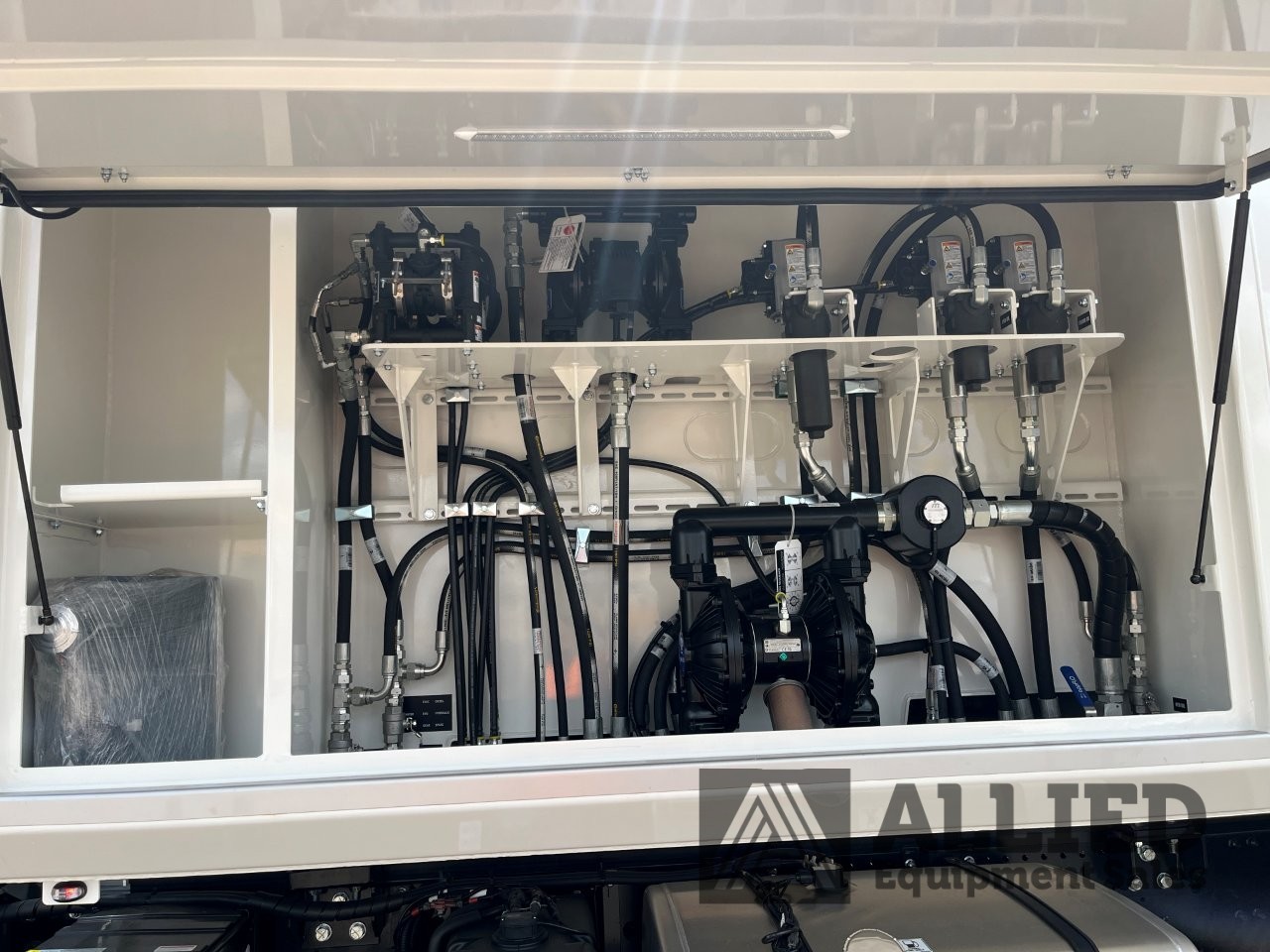

2 x 3 – 1 high volume oil pumps for hydraulic and engine oils

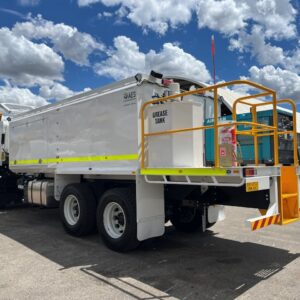

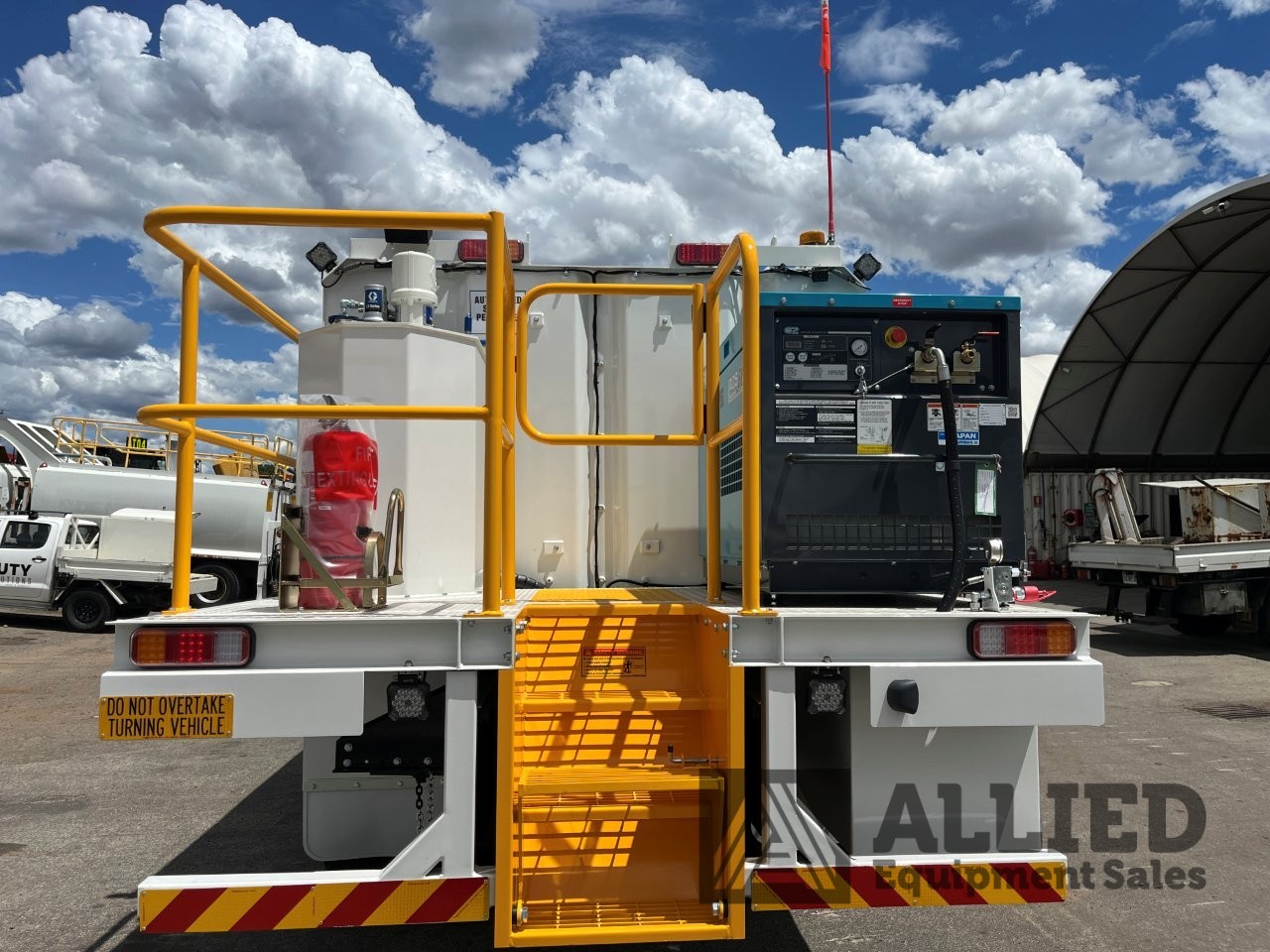

300 kg grease pod
6 -point front spring manual grease system
Air cleaner and filter storage box left hand side of the module with sealed door
All fill points and easy to view internal site glasses located inside the reel cabinet and Diesel fill site Glasses external
All hose reels and tanks are hard labeled for easy identification
Auto on Headlights
Bunded pump and reel compartment
Compressor / Park brake shut off

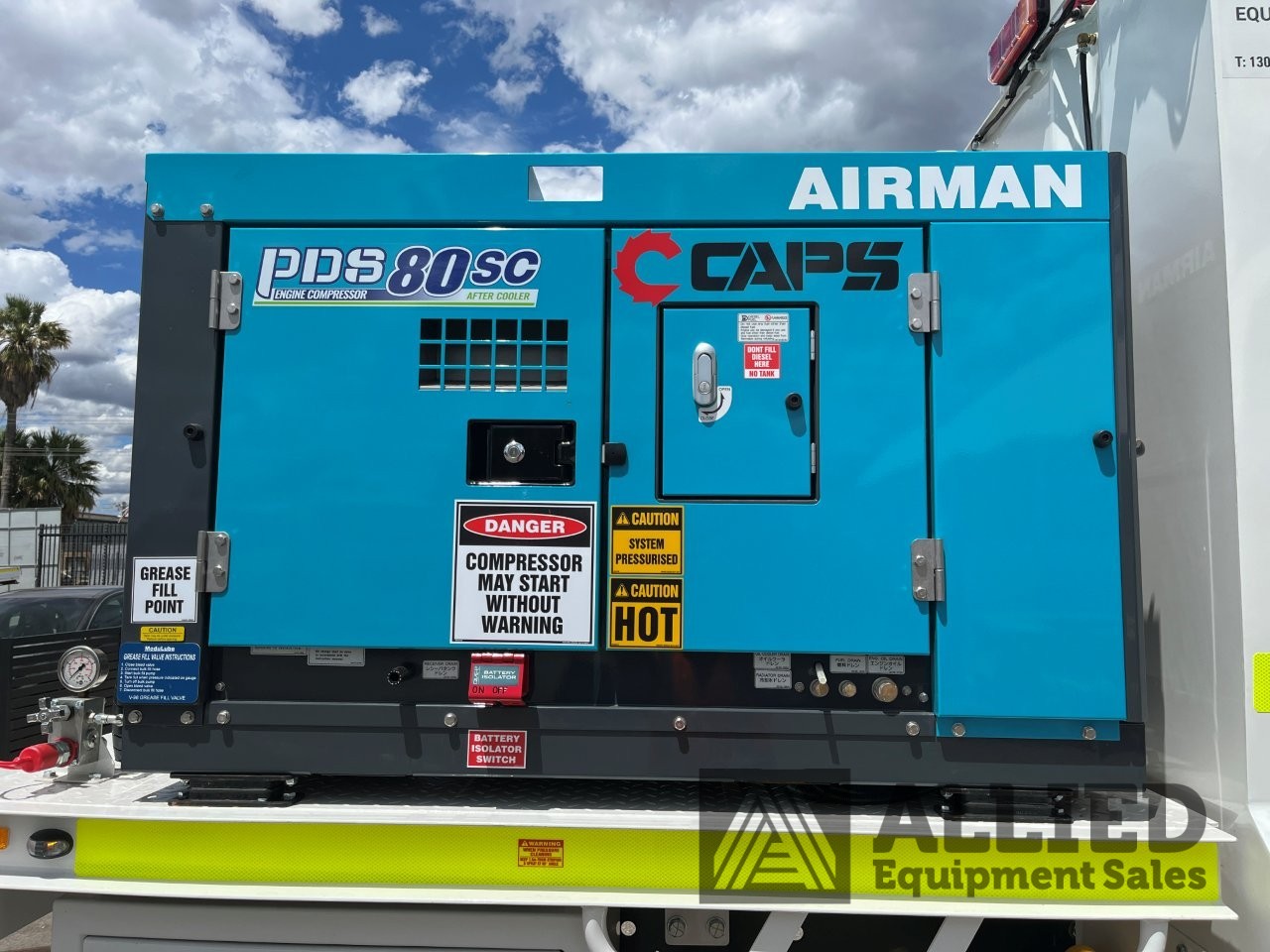

Compressor fueled from sub tank inside main diesel tank
DG3 Hi Vis Tape
Easy grip hand piece with non drip nozzles for oil dispensing reels

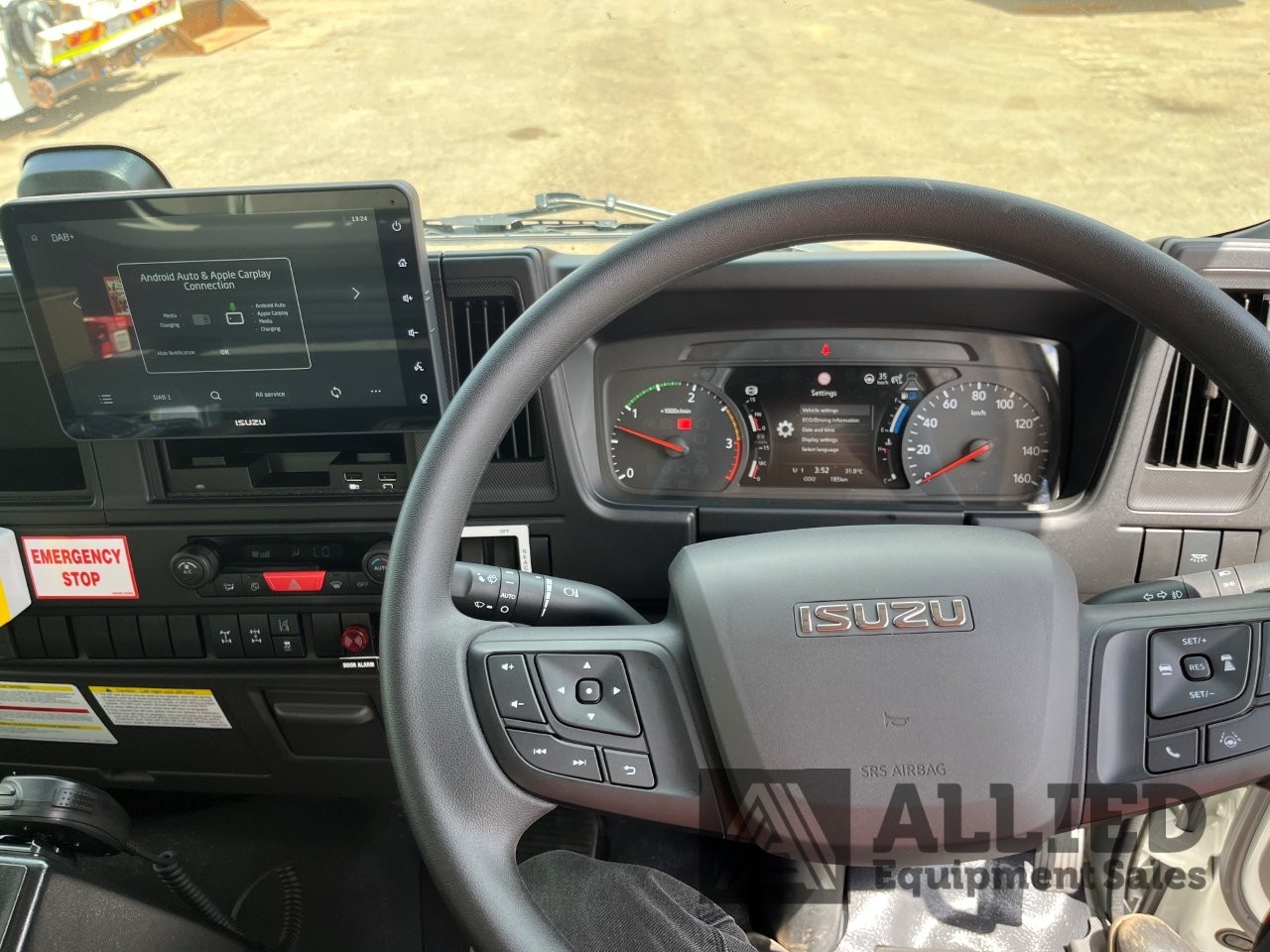

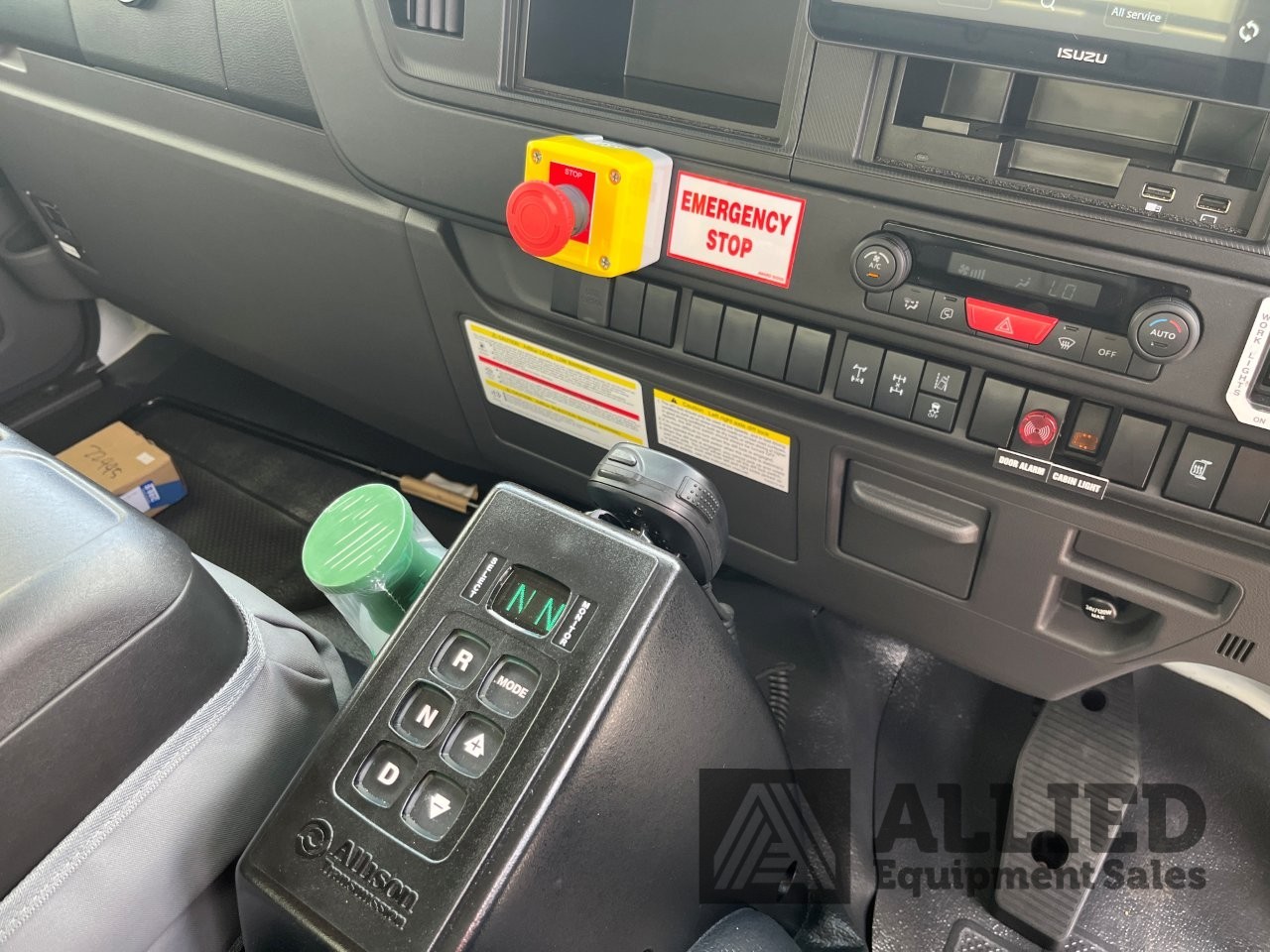

Emergency Stops fitted 1 x inside and 1 x outside of Cab area
Filter drain box chassis mounted

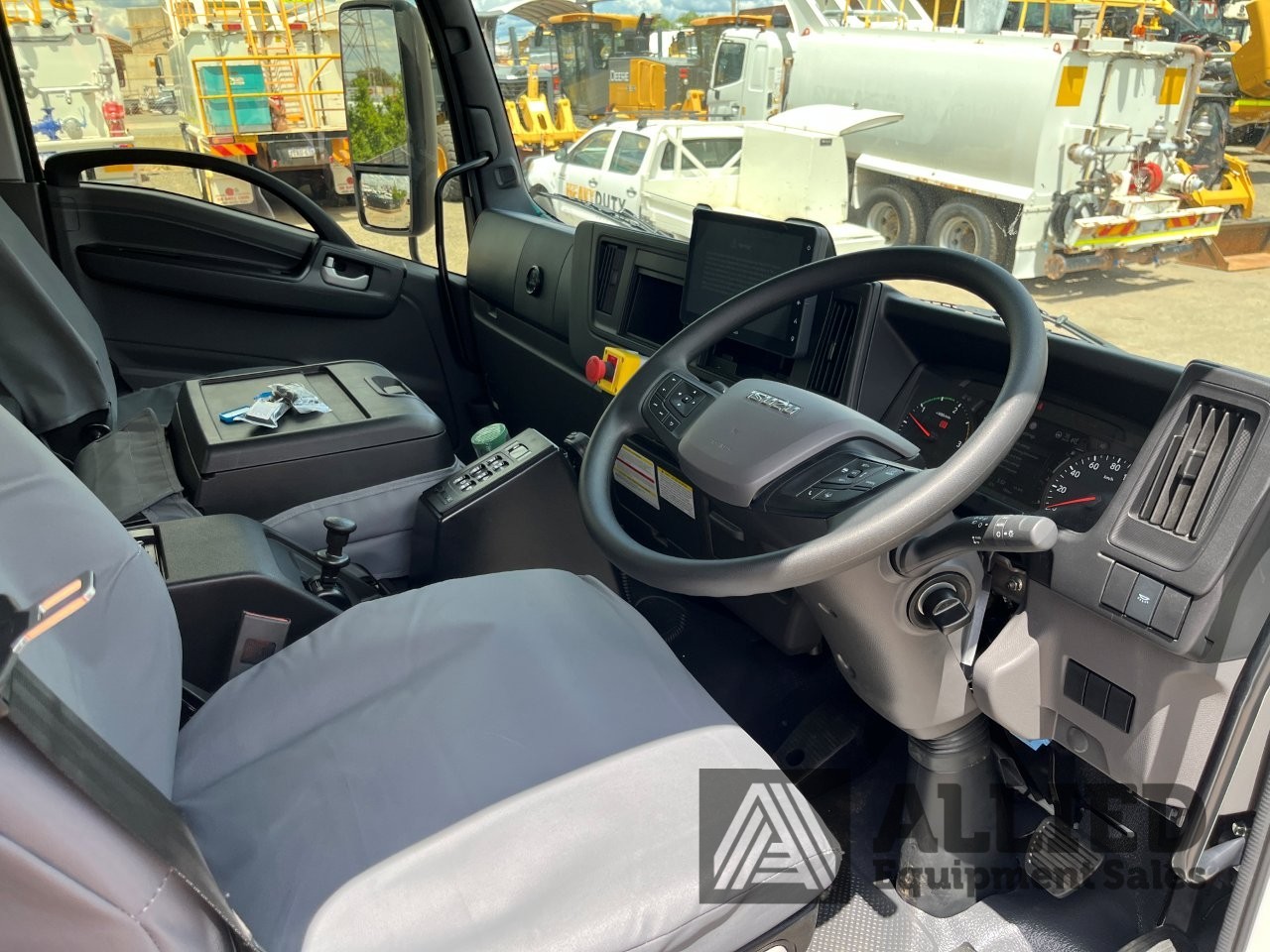

First aid and eyewash kits conveniently located in truck cabin
Fully sealed dust resistant pump and reel cabinet fitted with horizontally hinged compartment door for ground level access on Left- and right-hand side
Graco hose reels
LED Whip Aerial
Pressureless fast fill fuel to prevent over pressurizing the tank
Reversing Camera
Safety Triangles
Seat Covers
Single action ball valve isolators to all tank compartment outlets
Two 2 x 9kg DCP fire extinguishers accessible from ground level
UHF Radio
Wheel Chocks
Wheel Nut Indicators

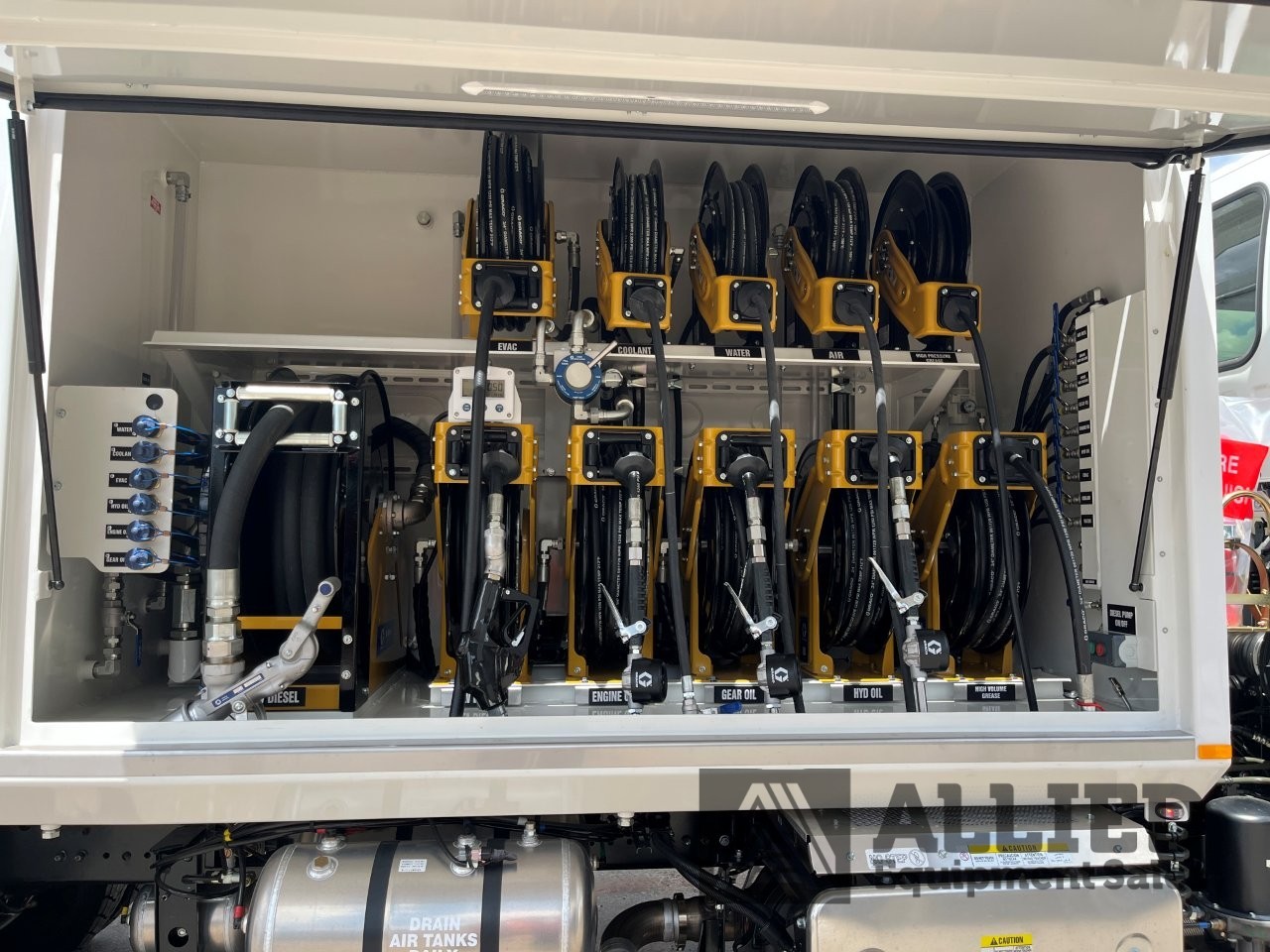

¾” hose reels for oil delivery and waste suction

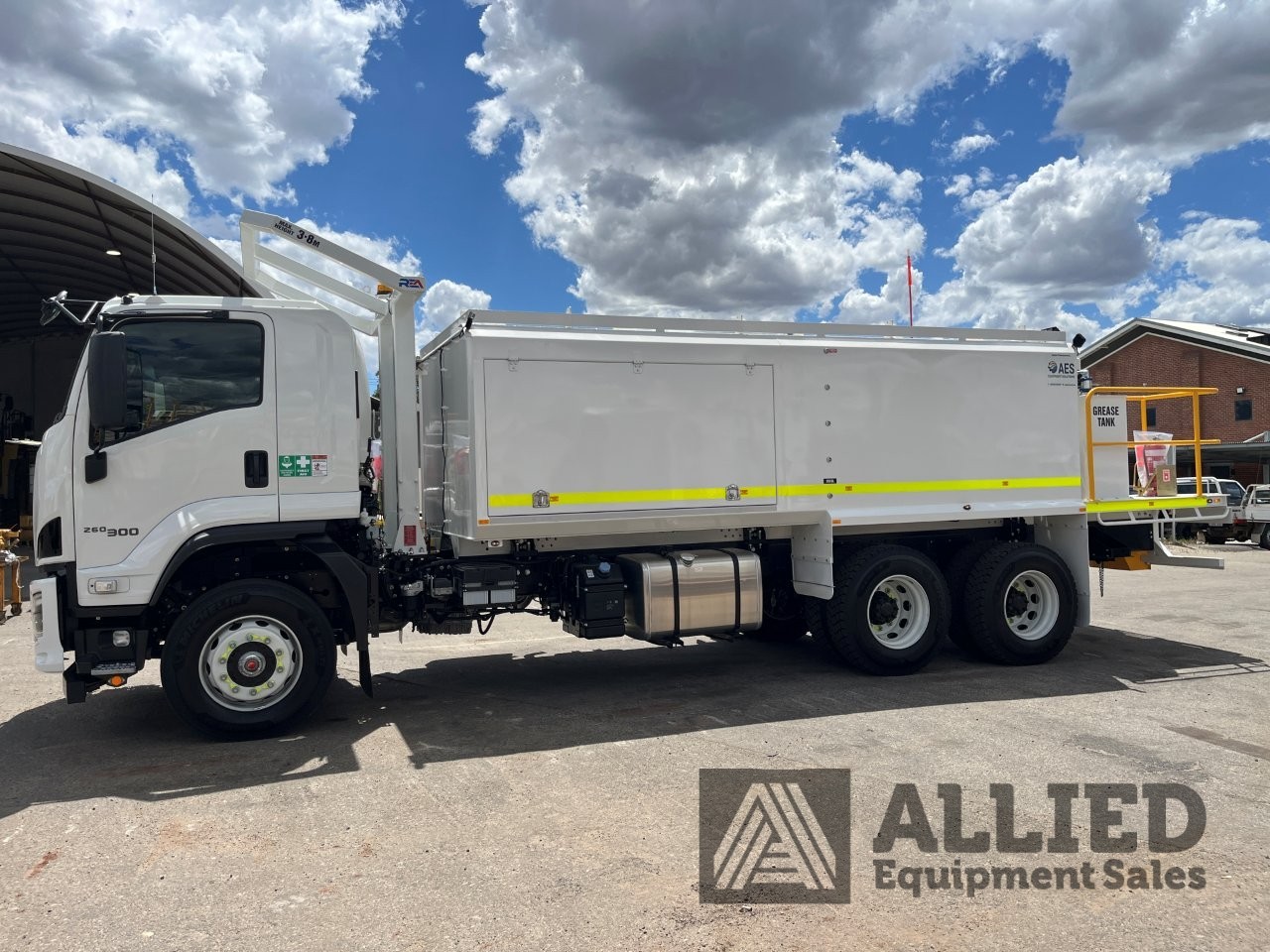

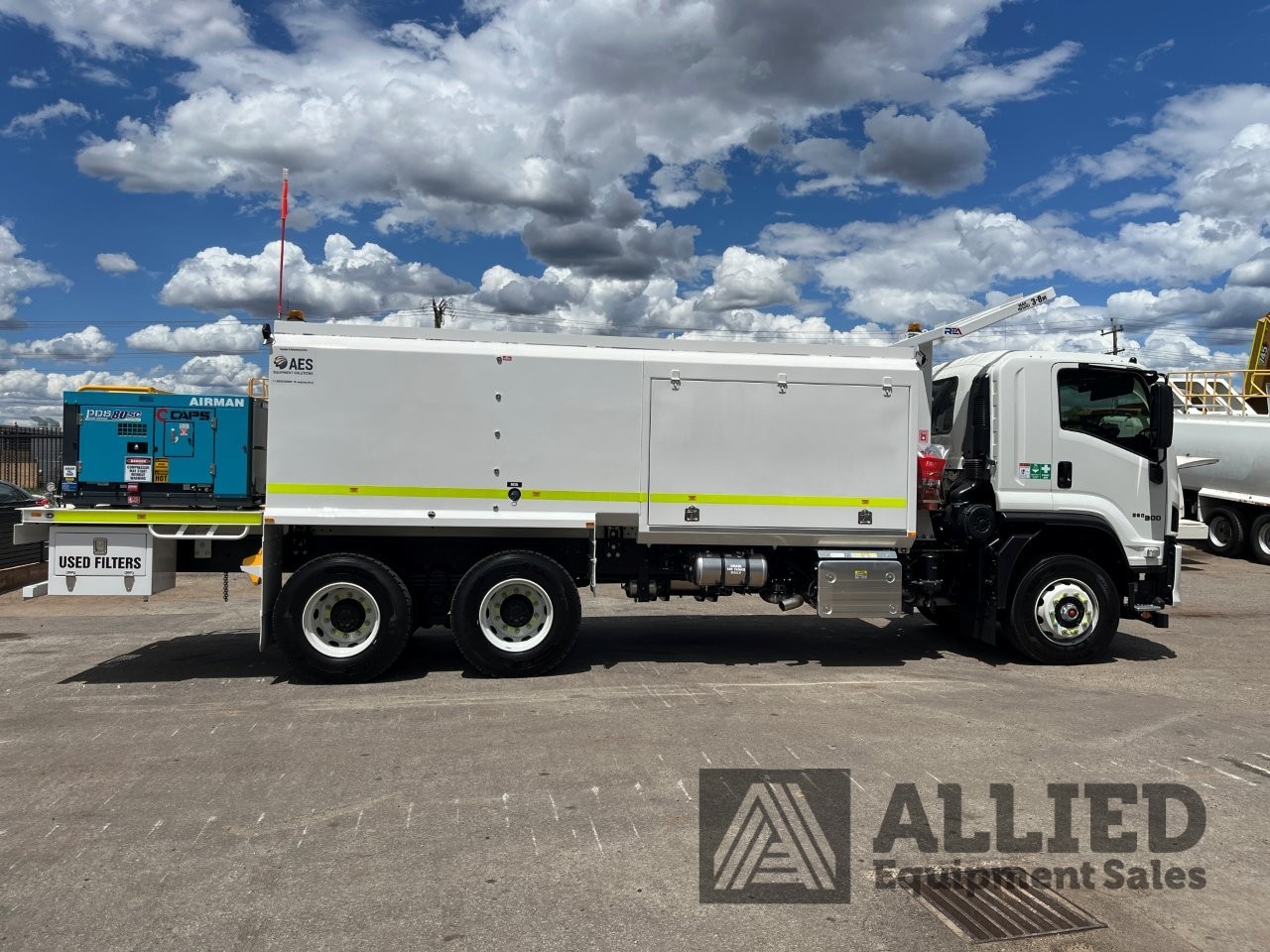

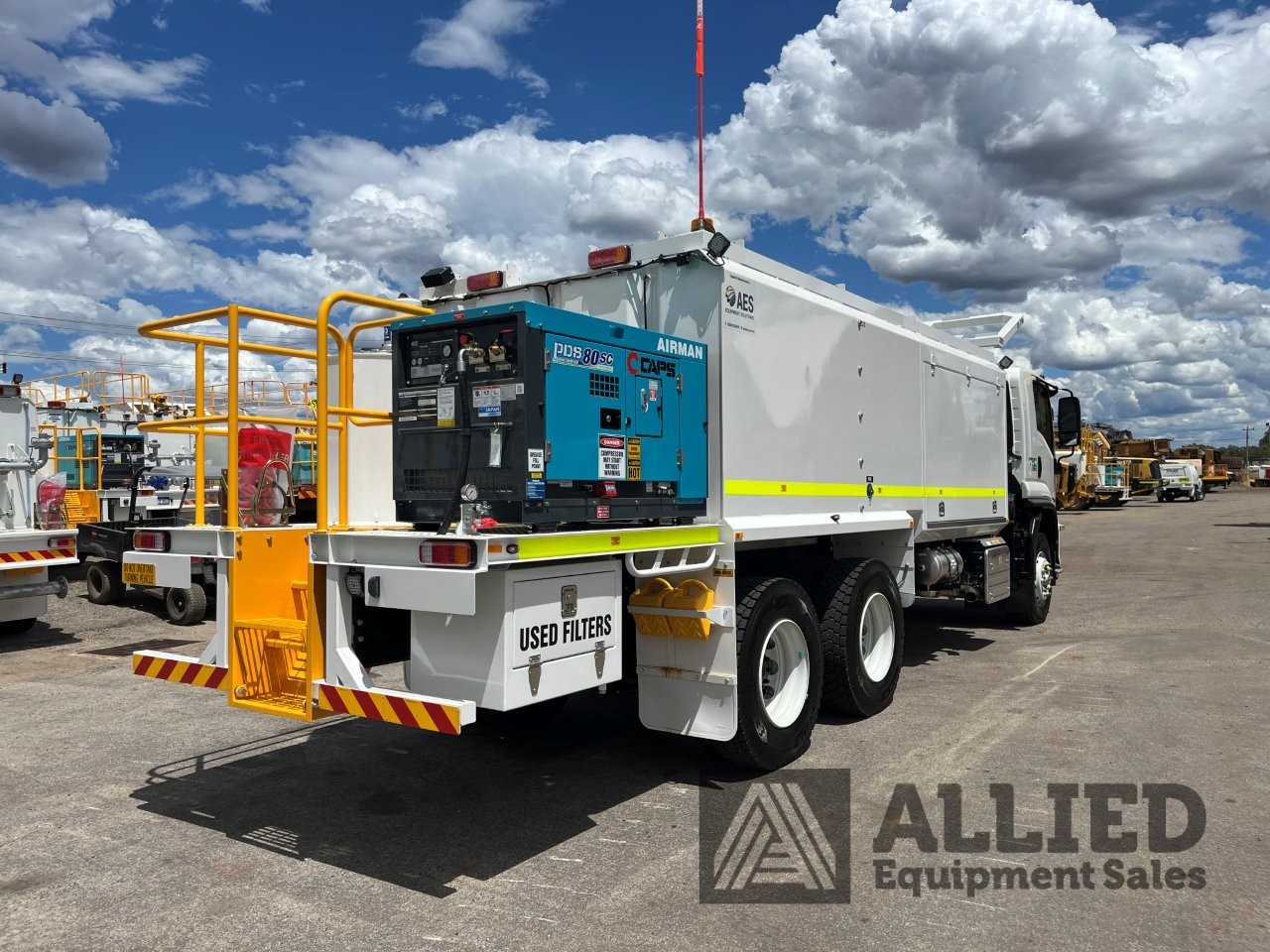

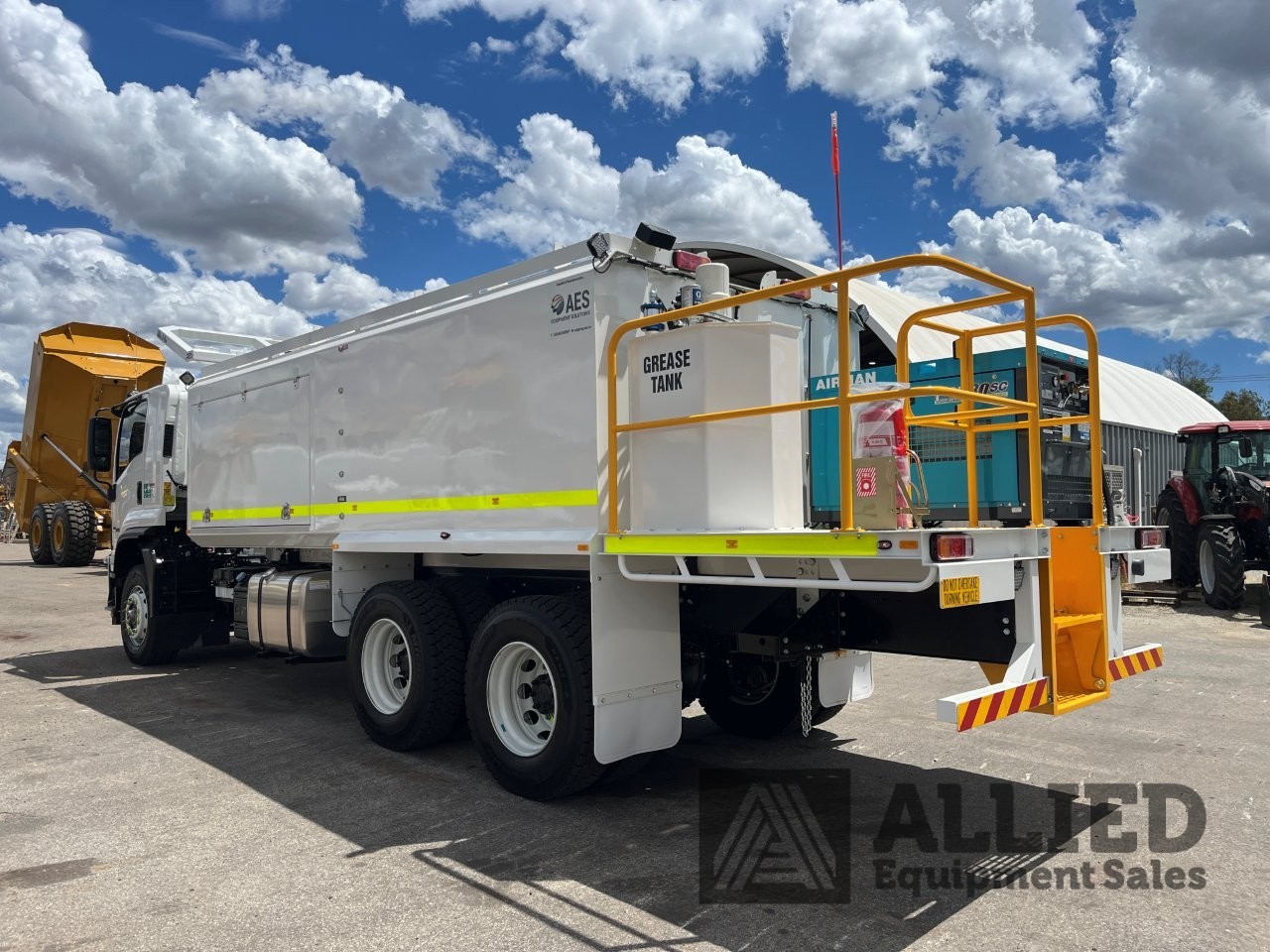

Large 8 compartment heavy duty steel chassis mounted tank module, rear tray with steel checker
plate floor and steel guards over tandem wheels c/w fully independent ROPS system tested and
certified to ISO 3471/3449
Tank Description Capacity
Tank 1 – Water 650 Litres
Tank 2 – Coolant 550 Litres
Tank 3 – Spare 560 Litres
Tank 4 – Waste Oil (Evac Tank) 680 Litres
Tank 5 – Hydraulic Oil 1430 Litres
Tank 6 – Engine Oil 1100 Litres
Tank 7 – Gear Oil 540 Litres
Tank 8 – Diesel Fuel 7000 Litres
Externally Fitted Grease Pod 300 Kilos
